柔性防撞柱

采用柔性材料制成,撞击后可自动恢复,保护车辆和区域设施安全

产品概述

博西尼柔性防撞柱采用高强度聚氨酯材料制成,具有良好的弹性和韧性,当车辆撞击时能够吸收冲击力并自动恢复原状,有效保护车辆和区域设施安全。

产品安装方便,无需复杂施工,可快速部署在各类场所。颜色醒目,具有良好的警示效果,是道路安全设施的理想选择。

广泛应用于地下车库、厂房、商场仓库 等需要区域安全防护的场所。

柔性防撞柱

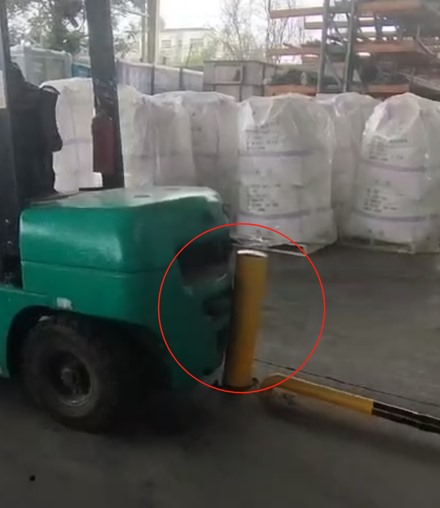

2吨叉车撞击柔性防撞柱现场测试图

Absorbable impact energy:

The vehicle is at a 45 degree angle to the bumper, and the rear end impacts the edge of the bumper

A 2.0-ton vehicle with a speed of 4 km/h
Impact energy: 1234 J

Absorbable impact energy:

The vehicle is at a 90 degree angle to the bumper, and the rear end impacts the middle of the bumper

A 2.0-ton vehicle with a speed of 3 km/h
Impact energy: 694 J

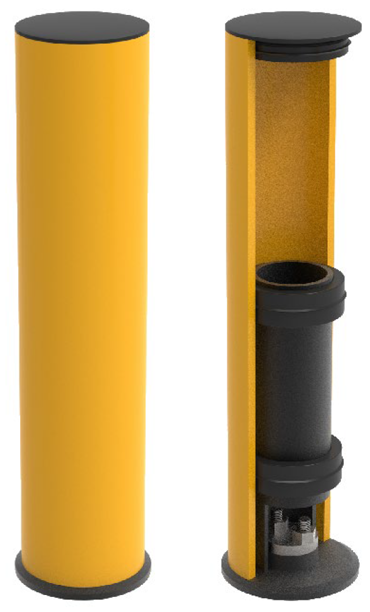

180 Flexible Anti collision Column H600
180 Flexible Anti collision Column H600

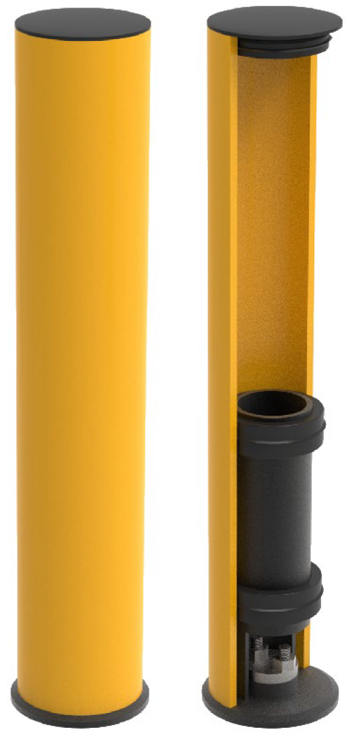

180 Flexible Anti collision Column H1000
180 Flexible Anti collision Column H1000
Product model: BSN-LEDACP-180A
Column specifications: diameter 180mm, height 600/800mm/1000mm ,thickness 14mm
Buffer mechanism: Bottom large chassis+thickened steel drum+rubber buffer wheel +built-in thickened rubber buffer pad

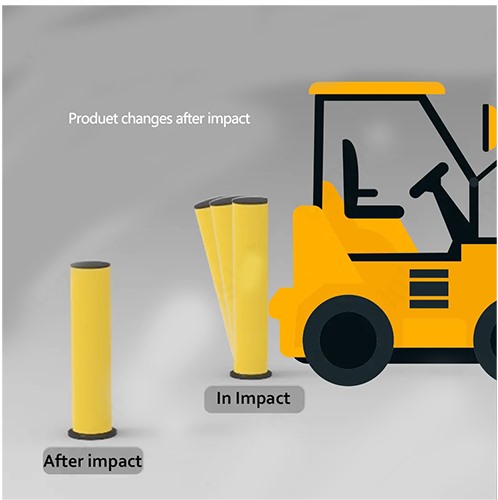

柔性防撞柱撞击中与撞击后自动恢复状态对比图

Absorbable impact energy:

The vehicle is at a 45 degree angle to the bumper, and the rear end impacts the edge of the bumper

A 4.0-ton vehicle with a speed of 6 km/h
Impact energy: 5555 J

Absorbable impact energy:

The vehicle is at a 90 degree angle to the bumper, and the rear end impacts the middle of the bumper

A 4.0-ton vehicle with a speed of 5 km/h
Impact energy: 3858 J

核心特点

自动恢复

撞击后自动恢复原状,无需更换,使用寿命长

安全防护

吸收撞击能量,保护车辆和区域设施安全

醒目警示

黄黑/红白配色,夜间反光效果好

安装便捷

底部法兰固定,安装简单快捷

耐用耐候

耐高低温、耐腐蚀,适用于各种户外环境

高强度

优质聚氨酯材料,抗冲击性能强

产品类型

固定式柔性柱

底部固定安装,适用拐角区域保护

限高门式保护柱

门式安装,适用于限高防护区域

围栏式保护柱

围栏安装,保护一整个区域

警示柔性柱

高度较低,主要用于道路警示

隔离柔性柱

用于道路隔离和分流

反光柔性柱

带有反光条,夜间可视性好

产品优势

50+
冲击次数
可承受50次以上撞击仍保持完好
-40~80℃
工作温度
适应各种极端气候环境
10年
使用寿命
正常使用可达10年以上

应用场景

停车场

住宅小区

商场周边

工厂仓库

医院通道
